Tech Info

2-Piece Rotor Technology

G3500 metallurgy floating rotors - eliminate warping, reduce heat, and outperform G3000 zinc-coated OEM

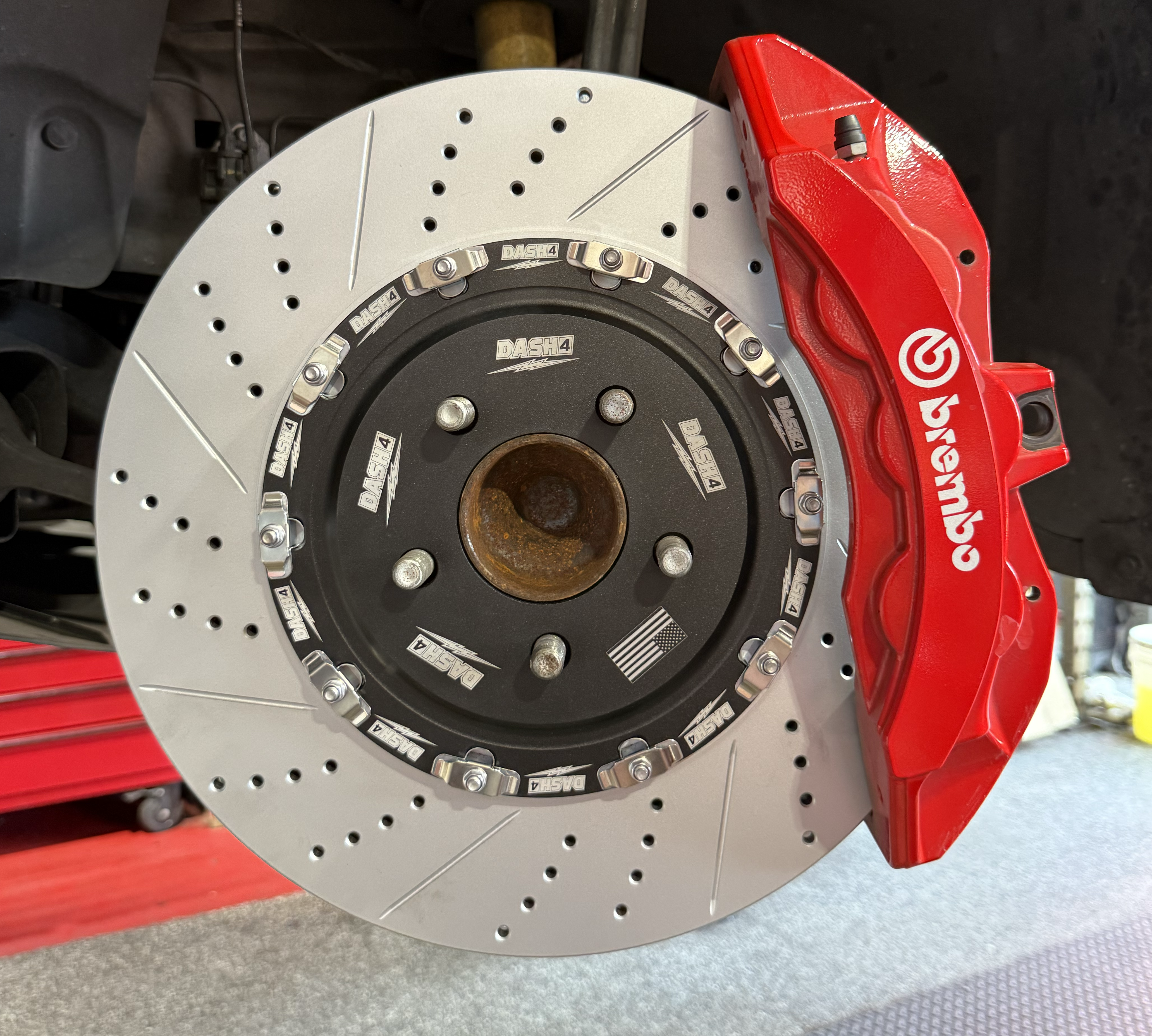

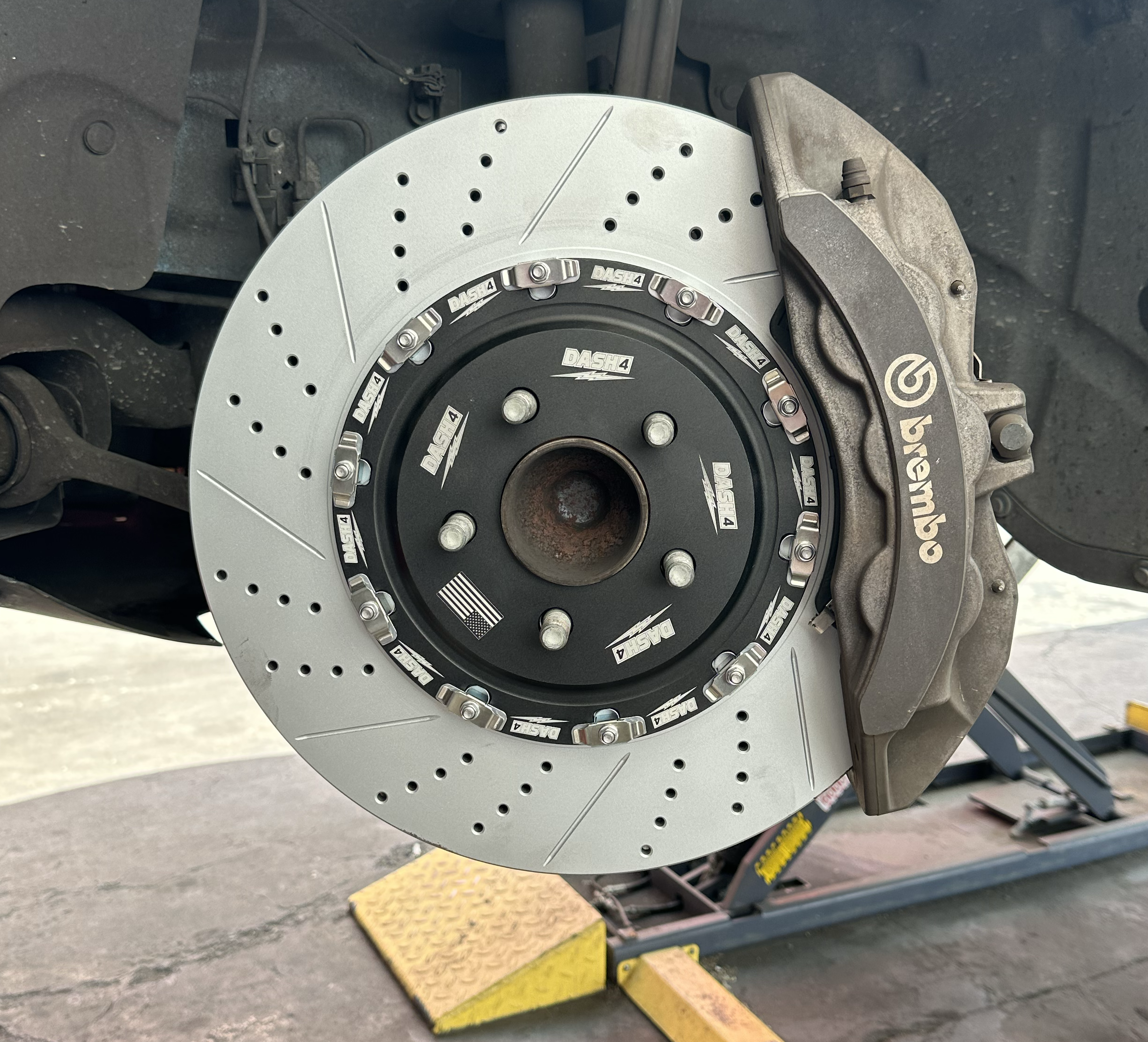

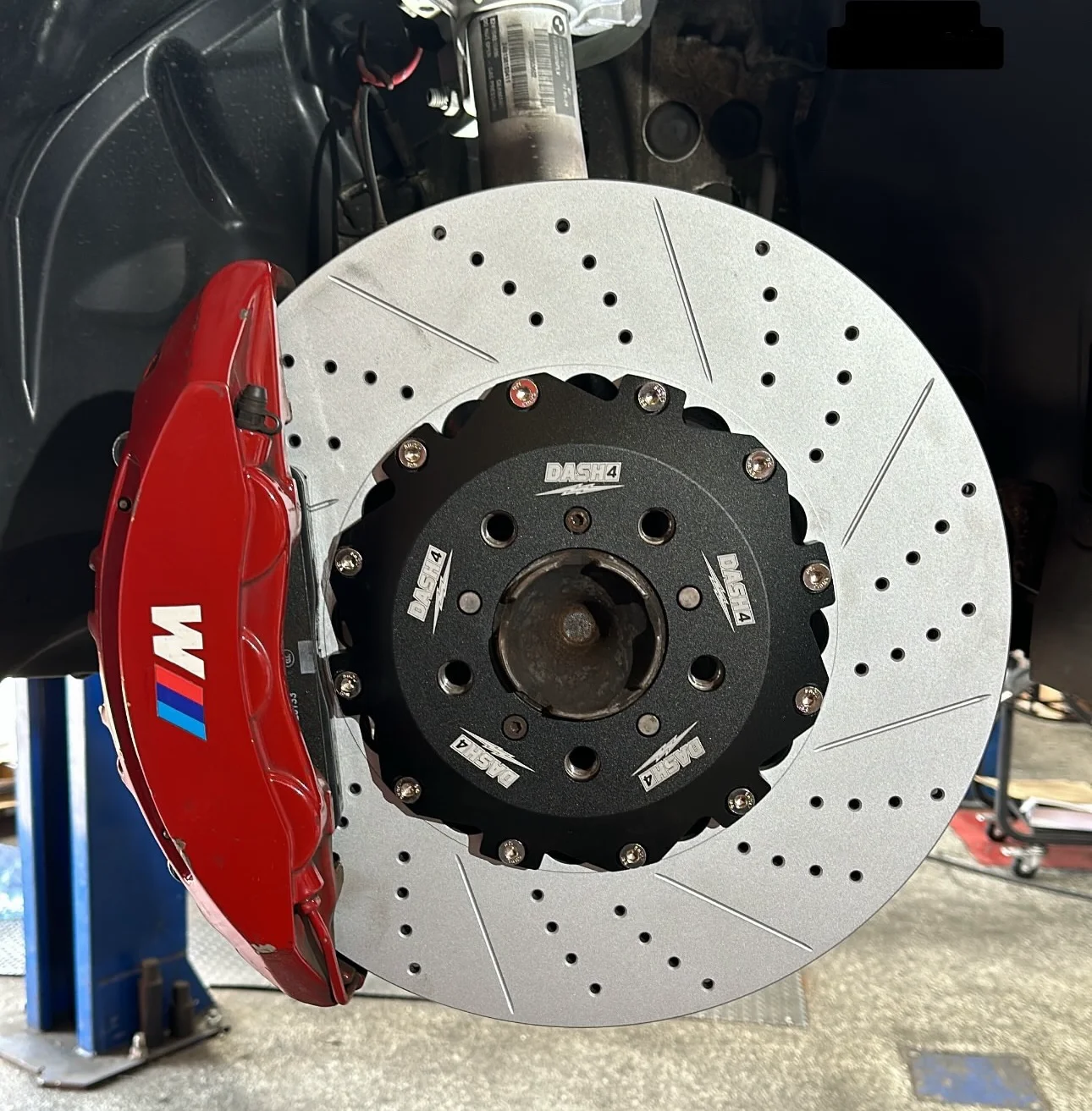

What Is a 2-Piece Floating Rotor?

A 2-piece rotor separates the friction ring (the part that contacts the brake pad) from the rotor hat (the mounting bell that attaches to the hub). The two pieces are connected by floating hardware that allows micro-movement between them.

This "floating" design is the key difference from a standard solid one-piece OEM rotor. On a solid rotor, the friction ring and hat are cast as one piece - meaning heat and stress from braking are transferred directly into the hub and wheel bearing area.

With a 2-piece design, the friction ring expands and contracts independently as it heats and cools, dramatically reducing thermal stress and the risk of cracking or warping.

Why 2-Piece Rotors Last Longer

Heat is the #1 enemy of brake performance. Under repeated hard braking, one-piece rotors develop thermal stress at the junction between the hat and ring. This leads to:

Warping and vibration through the pedal
Uneven pad wear and reduced braking consistency
Cracking around the hat area over time
Premature rotor replacement

Ghost Brakes 2-piece design eliminates these failure modes. The floating hardware absorbs thermal expansion, the friction ring stays flat, and your carbon ceramic pads wear evenly - maximizing life on both components.

Superior Cooling & Heat Management

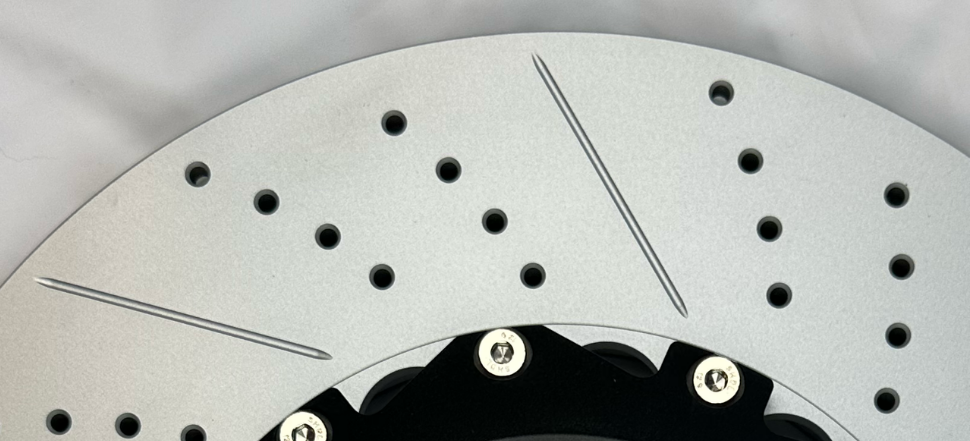

Our rotors combine the 2-piece floating design with drilled and slotted surfaces to maximize airflow and heat dissipation:

Internal vanes between the rotor faces pump air through the rotor as it spins
Double drilled holes accelerate cooling by increasing surface area exposed to airflow
Diamond slots vent hot gas and debris from the pad/rotor interface

The result is a rotor that runs significantly cooler under hard use - critical for high-performance vehicles, towing, or track days.

2-Piece vs OEM: Performance Comparison

Here's how Ghost Brakes G3500 metallurgy 2-piece rotors (GEOMET® coated) stack up against standard G3000 zinc-coated OEM rotors:

Stopping distance: Ghost Brakes deliver up to 30% shorter stopping distances under repeated hard braking
Fade resistance: Floating design maintains consistent pad contact even at elevated temperatures
Weight: Premium aluminum hat reduces unsprung weight vs. cast iron one-piece rotors
Longevity: No warping = longer rotor life and fewer replacements

For a full side-by-side breakdown, read our OEM vs Ghost Brakes comparison.

Direct Bolt-On Fitment

Every Ghost Brakes 2-piece kit is precision machined to OEM dimensions for your specific vehicle. No modifications required - bolt straight onto factory calipers and hubs.

Available kits for:

Each kit includes GEOMET® coated rotors and premium carbon ceramic brake pads, backed by a Lifetime Warranty.
