Diamond Slotted Rotors: Why This Design Outperforms Traditional Rotors

Key Performance Advantages:

1. Enhanced braking performance – up to 30% improvement over factory rotors
2. Longer rotor and pad life – carefully engineered slots prevent over-wearing
3. Cleaner wheels – low dust design keeps wheels looking new
4. Fade resistance – superior heat management for spirited driving or towing

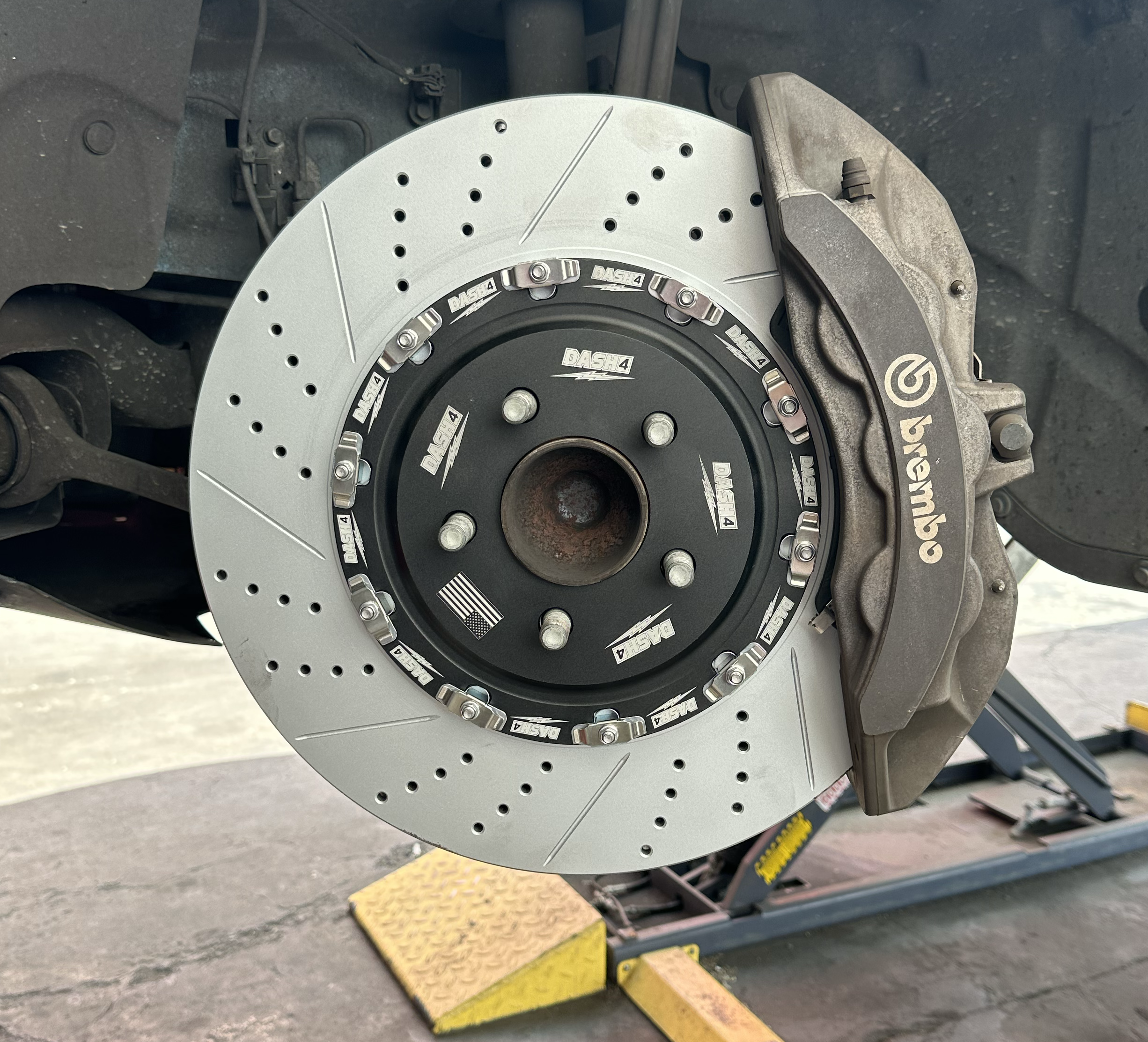

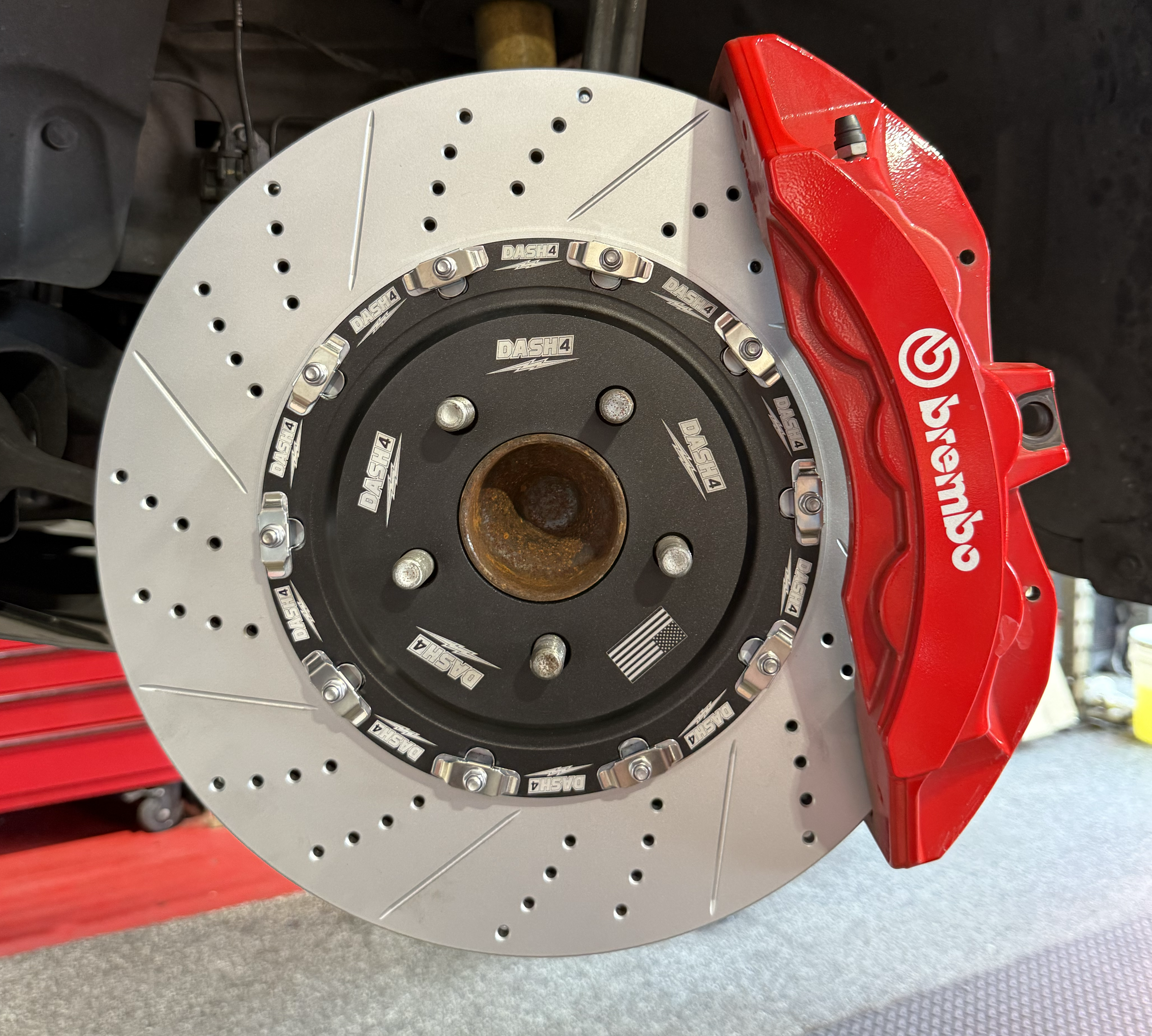

Our 2-piece rotor kits also feature double drilled holes, which accelerate rotor cooling, reduce hot spots, and improve longevity under high stress.

This combination of diamond slots + double drilling gives you the most balanced, durable performance for street and track use.

• Install with standard torque settings
• Avoid excessive slot cleaning chemicals; mild soap and water is sufficient
• Follow proper brake pad bedding procedure

Upgrade today with Ghost Brakes' diamond slotted rotor kits for next-level braking performance - 2-piece floating for muscle and track builds, 555-tier 1-piece D&S for trucks and towing.

Not all slot patterns behave the same under load. Straight radial slots cut directly across the rotor face clear pad gas quickly but concentrate stress at a single edge angle, which is the most common crack-initiation point on cheap aftermarket rotors after repeated heat cycles. Curved slots follow the rotor's rotational arc and reduce that stress concentration, but clear debris less aggressively at low RPM.

The diamond pattern Ghost Brakes uses crosses two slot angles so each one only partially intersects the friction path at any given moment - the pad never rides over a full open slot the way it can with long straight cuts. That keeps effective pad contact area higher (which matters for a truck under sustained trailer braking) while still clearing gas and dust continuously, without the single stress-riser edge that shortens rotor life on straight-slot designs. It's a deliberate trade-off toward durability and consistency over the last few percent of outright bite, which is exactly what both a towing rig and a daily-driven muscle car need more than a dedicated track-only rotor does.

A diamond slot pattern is only as good as the iron it's cut into. Ghost Brakes casts truck rotors from G11H18 high-carbon iron, chosen specifically for its resistance to heat-check cracking at slot and drill edges - the failure mode most common on cheap towing rotors that use standard G3000-grade iron. G11H18's higher carbon content raises the graphite flake density in the microstructure, which improves thermal conductivity and lets heat move away from the friction surface faster during a long grade descent with a loaded trailer.

Muscle and track platforms run a different iron grade - G3500 - in the 777-tier 2-piece floating rotors, optimized for rapid heat-up and cool-down cycles between hot laps rather than the sustained, lower-intensity heat soak of towing. Both grades use the identical diamond slot cut, which is why the pattern performs consistently whether it's clearing pad gas on a road course straightaway or on a mountain pass with 8,000 lbs of trailer behind an F-150. Read more on rotor construction differences in our drilled and slotted rotor technology guide.
